Revolve (2017-2020)

  • Earth observation instrumentation
  • Telecommunication payloads
  • Military Communications antennas
  • Military reconnaissance and intelligence
  • Several ESA and DLR R&D projects by LSS for RF even up to 200+ GHz
  • Drastically enhances performance and functionalities of small satellites

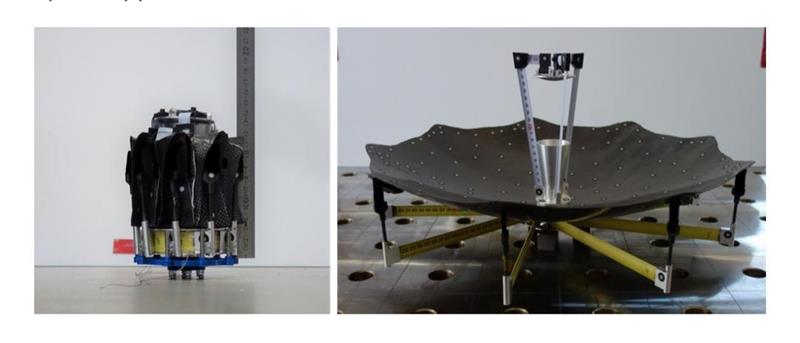

  • Stowed volume: 1.5U (10cm x 10cm x 15cm) volume for CubeSat applications
  • Origami folding design – OriFlexⓇ
  • FlexRS®-I RF shell-membrane surface
  • Deployed Geometry: projected diameter: 0.5m (customizable)//focal length: 0.5m
  • Surface Accuracy (RMS): 0.21 mm
  • Reflector deploys passively once HDRM is unlocked
