Advanced deployable reflectors, flexible surfaces for the future of space missions.

Our Products

Products for your space mission

Explore our competitive and high performance offering across all deployable reflector and deployable reflector systems domains. We are delivering operational excellence and maintaining industry leadership.

LDRs >5m

LDRs 1-5m

Deployable antenna for small satellites

Antenna Reflectors

Other Products

Flexible Reflecting Surfaces

Our Products

Products for your space mission

Explore our competitive and high performance offering across all deployable reflector and deployable reflector systems domains. We are delivering operational excellence and maintaining industry leadership.

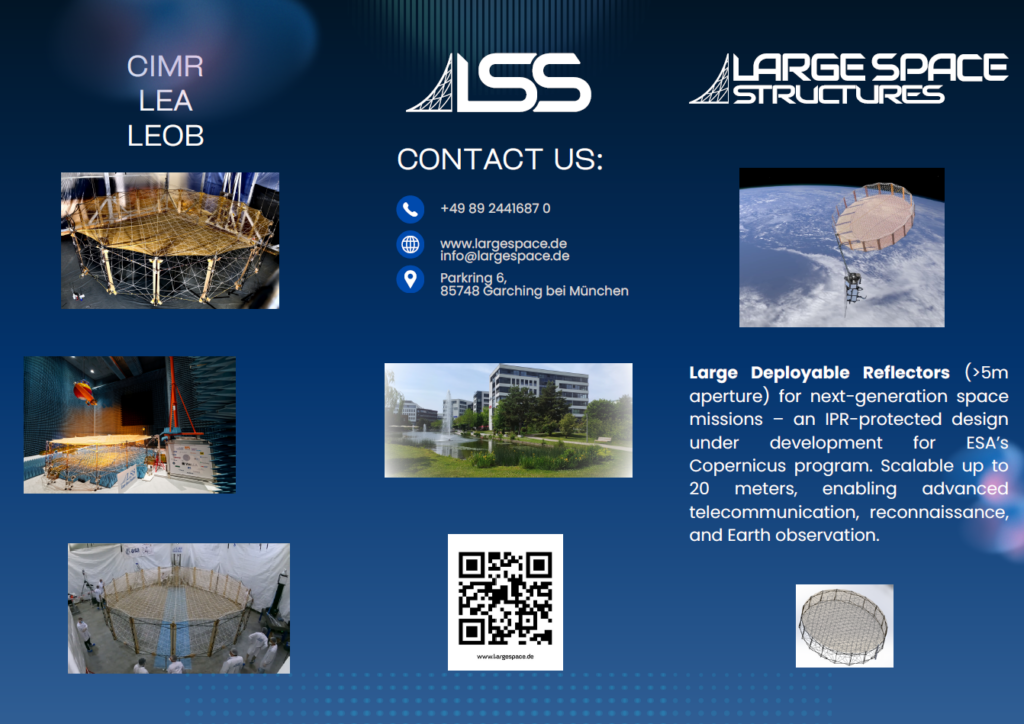

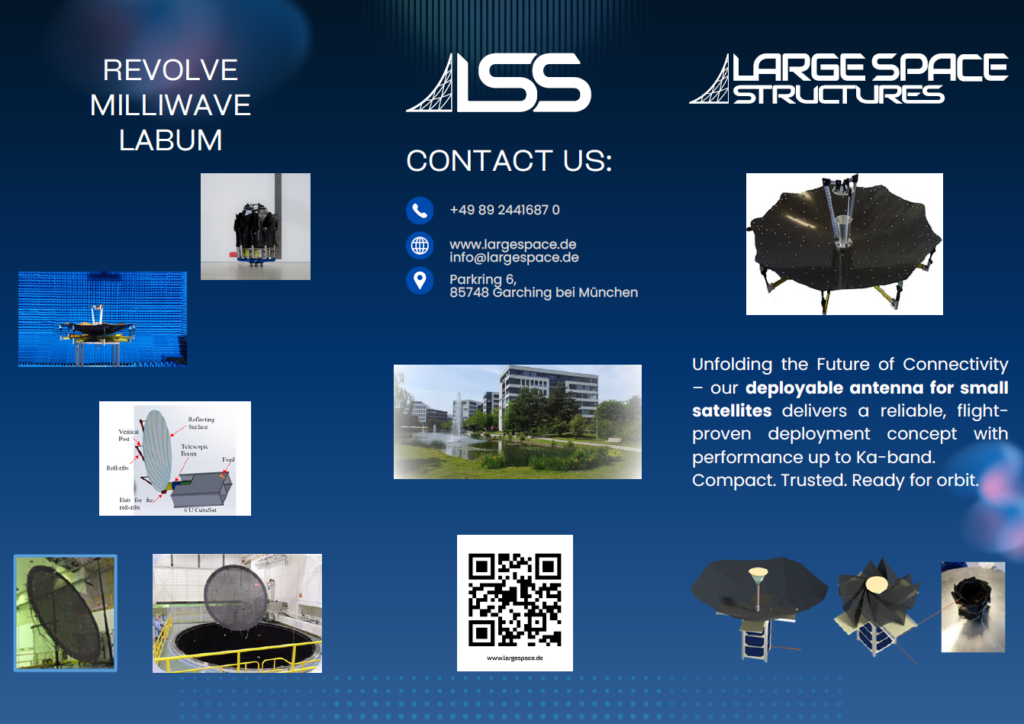

Product Flyer

Download our latest product flyer

Discover our product portfolio and the unique strengths behind each solution. Our flyers provide detailed insights into parameter specifications, use cases, key benefits, and core features. Take a closer look and see how our solutions can create real value for you.

LDR >5m
LDR <5m
Small Satellites
Download
Download
Download

Explore our deployable anntenas for small satellites.

Parameter

REVOLVE

Structural Principle

FlexRS® shell, Origami-folded

Frequency Range

X- to Ka-band

Gain

41 dBi (@ 30 GHz)

Deployed Geometry


Projected Diameter

0.5 m (customizable)

Focal Length

0,2 m

Surface Accuracy (RMS)

0.21 mm

Stowed Volume

1.5 Cube Units

Mass

Stowed Reflector, Subreflector, Support Beams, Feed Horn

0.80 kg

Structural Stiffness

In Stowed Configuration

>90 Hz

In Deployed Configuration

11 Hz

Parameter

MilliWave

Structural Principle

Metal-coated FlexRS® shell-membrane, origami-folded

Frequency Range

W-band

Gain

51.67 dBi (@ 89 GHz)

Deployed Geometry


Projected Diameter

0.5 m (customizable)

Focal Length

0.5 m

Clearance

0.025 m

Surface Accuracy (RMS)

0.13 mm

Stowed Volume

1.5 Cube Units

Mass

Reflector, Boom

2.0 kg

Structural Stiffness

In Stowed Configuration

>90 Hz

In Deployed Configuration

1 Hz

Explore our Large Deployable Reflectors (1- 5m)

Parameter

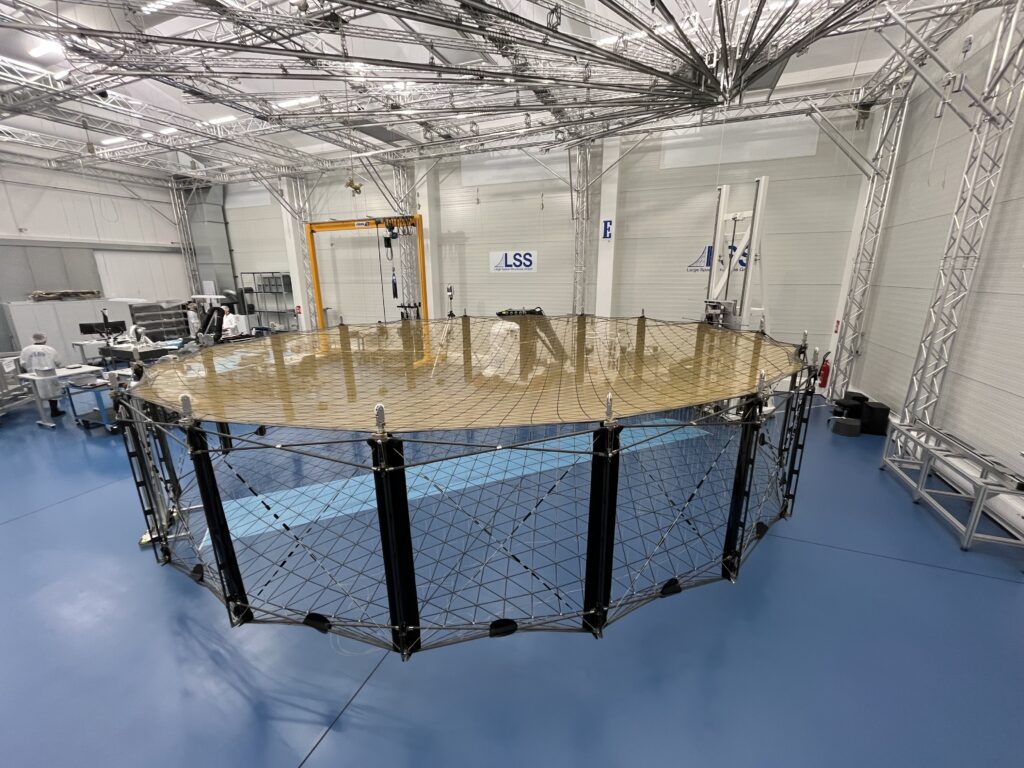

DRAC

Frequency Range

Up to Ka-band

Deployed Geometry

Projected Diameter

1 m

Focal Length

1 m

Center Offset

0.6 m

Height Deployed

0.3 m

Surface Accuracy (RMS)

< 0.25 mm

Stowed dimensions


Height

0.19 m

Diameter

0.087 m

Mass

Stowed Reflector

2,6 kg

Deployed Reflector

1.13 kg

Structural Stiffness

In Stowed Configuration

> 150 Hz

In Deployed Configuration

> 1.4 Hz

Parameter

KAMPER

Frequency Range

Up to Ka-band

Deployed Geometry

Projected Diameter

1 m

Focal Length

1 m

Center Offset

0.8 m

Height Deployed

-

Surface Accuracy (RMS)

< 0.3 mm

Stowed dimensions


Height

0.56 m

Diameter

0.092 m

Mass

Stowed Reflector

3,0 kg

Deployed Reflector

1.6 kg

Structural Stiffness

In Stowed Configuration

> 100 Hz

In Deployed Configuration

> 1 Hz

Explore our Large Deployable Reflectors (>5m)



Parameter

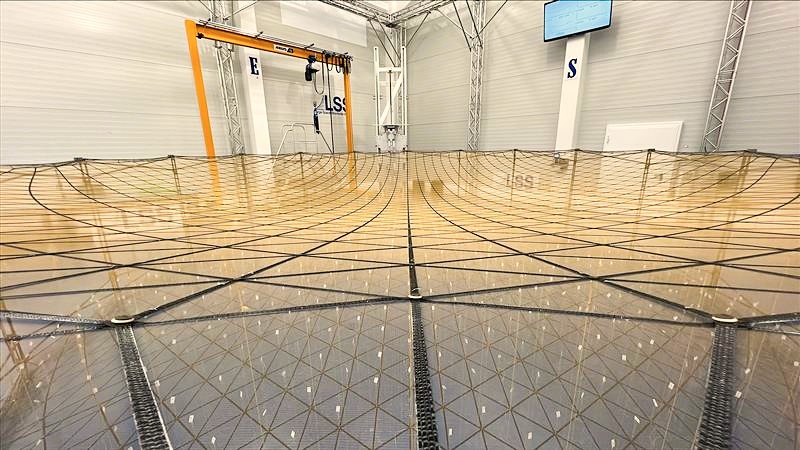

CIMR

Frequency Range

L-to Ka-band

Deployed Geometry

Projected Diameter

7.127 m

Focal Length

6.1155 m

Center Offset

6.1185 m

Surface Accuracy (RMS)

< 0.32 mm

Stowed dimensions


Height

1.59 m

Diameter

0.54 m

Mass

Stowed Reflector with HDRM

115 kg

Deployed Reflector

57 kg

Structural Stiffness

In Stowed Configuration

> 55 Hz Lateral

> 85 Hz Axial

In Deployed Configuration

> 1 Hz

Parameter

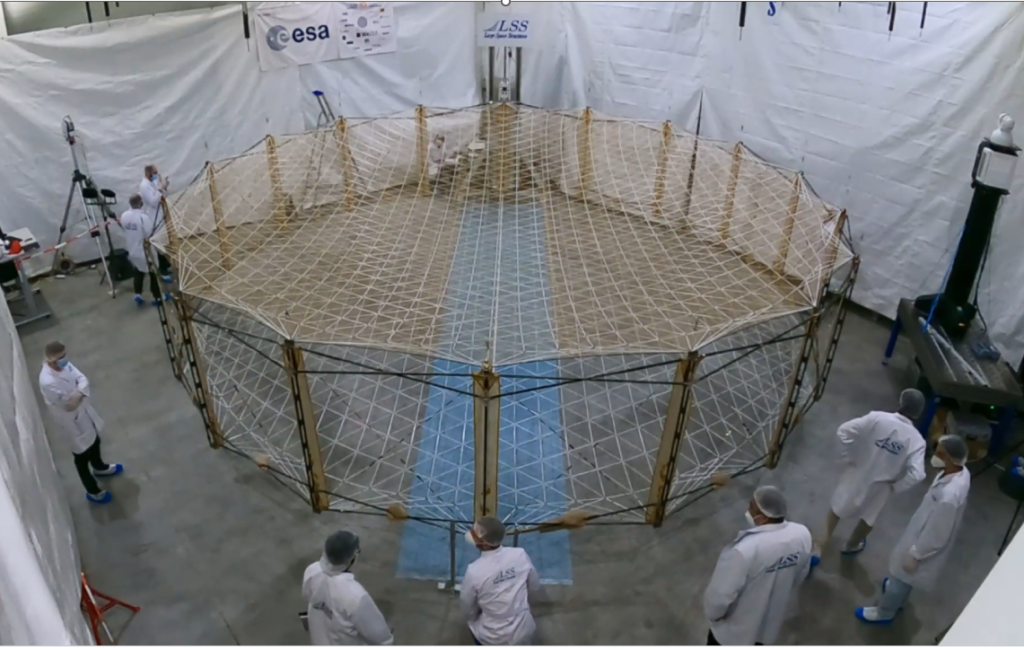

LEOB

Frequency Range

L-to Ka-band

Deployed Geometry

Projected Diameter

7.5 m

Focal Length

6.75 m

Center Offset

6.183 m

Surface Accuracy (RMS)

< 0.45 mm

Stowed dimensions


Height

1.67 m

Diameter

0.53 m

Mass

Stowed Reflector with HDRM

95 kg

Deployed Reflector

51 kg

Structural Stiffness

In Stowed Configuration

> 50 Hz Lateral

> 60 Hz Axial

In Deployed Configuration

> 1 Hz

Parameter

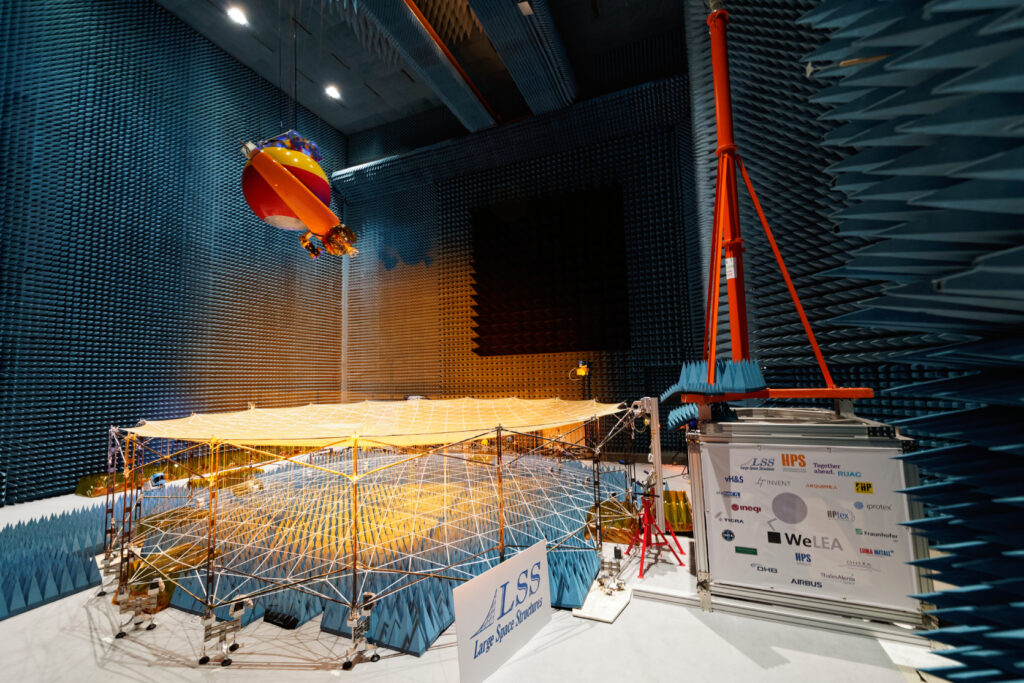

LEA

Frequency Range

S-to X-band

Deployed Geometry

Projected Diameter

5.1 m

Focal Length

5.1 m

Center Offset

3.55 m

Surface Accuracy (RMS)

< 0.4 mm

Stowed dimensions


Height

1.2 m

Diameter

0.42 m

Mass

Stowed Reflector with HDRM

38.5 kg

Deployed Reflector

24 kg

Structural Stiffness

In Stowed Configuration

> 50 Hz Lateral and Axial

In Deployed Configuration

> 1.2 Hz

Large Deployable Reflectors (>5m)

Large deployable reflectors (>5 m aperture) designed for next-generation space missions – an IPR-protected concept currently being developed within ESA’s Copernicus program. Scalable to diameters of up to 20 meters, supporting advanced telecommunications, reconnaissance, and Earth observation capabilities.

Key features:

  • Mesh antennas deployed by expandable, peripheral ring
  • Frequency range up to Ka- band
  • Flight model in manufacturing/ validation
  • In orbit operation expected in 2029 (CIMR)

Key benefits:

  • Fully European sourced and managed
  • High reliability demonstrated through ESA program
  • ECSS conformity demonstrated in ESA project

Use cases:

  • Earth observation and communications antennas for medium sized and large satellites
  • Military reconnaissance programs in SAR, SigInt
Explore Reflectors

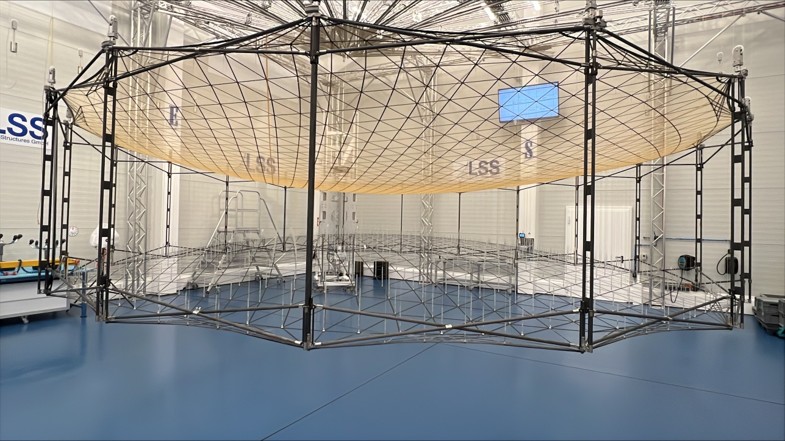

Parameter

CIMR

Frequency Range

L-to Ka-band

Deployed Geometry

Projected Diameter

7.127 m

Focal Length

6.1155 m

Center Offset

6.1185 m

Surface Accuracy (RMS)

< 0.32 mm

Stowed dimensions


Height

1.59 m

Diameter

0.54 m

Mass

Stowed Reflector with HDRM

115 kg

Deployed Reflector

57 kg

Structural Stiffness

In Stowed Configuration

> 55 Hz Lateral

> 85 Hz Axial

In Deployed Configuration

> 1 Hz

Parameter

LEOB

Frequency Range

L-to Ka-band

Deployed Geometry

Projected Diameter

7.5 m

Focal Length

6.75 m

Center Offset

6.183 m

Surface Accuracy (RMS)

< 0.45 mm

Stowed dimensions


Height

1.67 m

Diameter

0.53 m

Mass

Stowed Reflector with HDRM

95 kg

Deployed Reflector

51 kg

Structural Stiffness

In Stowed Configuration

> 50 Hz Lateral

> 60 Hz Axial

In Deployed Configuration

> 1 Hz

Parameter

LEA

Frequency Range

S-to X-band

Deployed Geometry

Projected Diameter

5.1 m

Focal Length

5.1 m

Center Offset

3.55 m

Surface Accuracy (RMS)

< 0.4 mm

Stowed dimensions


Height

1.2 m

Diameter

0.42 m

Mass

Stowed Reflector with HDRM

38.5 kg

Deployed Reflector

24 kg

Structural Stiffness

In Stowed Configuration

> 50 Hz Lateral and Axial

In Deployed Configuration

> 1.2 Hz

Large Deployable Reflectors (1-5 m)

Large deployable reflectors (1- 5m aperture) designed for next-generation space missions – an IPR-protected concept currently being developed within ESA’s Copernicus program. Scalable to diameters of up to 20 meters, supporting advanced telecommunications, reconnaissance, and Earth observation capabilities.

Key features:

  • Mesh antennas deployed by expandable, peripheral ring
  • Frequency range up to Ka- band
  • Flight model in manufacturing/ validation
  • Intellectual property rights for LDR design

Key benefits:

  • Fully European sourced and managed
  • High reliability demonstrated through ESA program
  • ECSS conformity demonstrated in ESA project

Use cases:

  • Earth observation and communications antennas for small and medium sized satellites
  • Military reconnaissance programs in SAR, SigInt
Explore Reflectors

Parameter

DRAC

Frequency Range

Up to Ka-band

Deployed Geometry

Projected Diameter

1 m

Focal Length

1 m

Center Offset

0.6 m

Height Deployed

0.3 m

Surface Accuracy (RMS)

< 0.25 mm

Stowed dimensions


Height

0.19 m

Diameter

0.087 m

Mass

Stowed Reflector

2,6 kg

Deployed Reflector

1.13 kg

Structural Stiffness

In Stowed Configuration

> 150 Hz

In Deployed Configuration

> 1.4 Hz

Parameter

KAMPER

Frequency Range

Up to Ka-band

Deployed Geometry

Projected Diameter

1 m

Focal Length

1 m

Center Offset

0.8 m

Height Deployed

-

Surface Accuracy (RMS)

< 0.3 mm

Stowed dimensions


Height

0.56 m

Diameter

0.092 m

Mass

Stowed Reflector

3,0 kg

Deployed Reflector

1.6 kg

Structural Stiffness

In Stowed Configuration

> 100 Hz

In Deployed Configuration

> 1 Hz

Test Services

Testing of Materials, Components & Structures

Key features:

  • Frequency range: P-band to W-band
  • Sizes: 0.5 m to >12 m
  • Custom designs for various satellite platforms
Explore Test Services

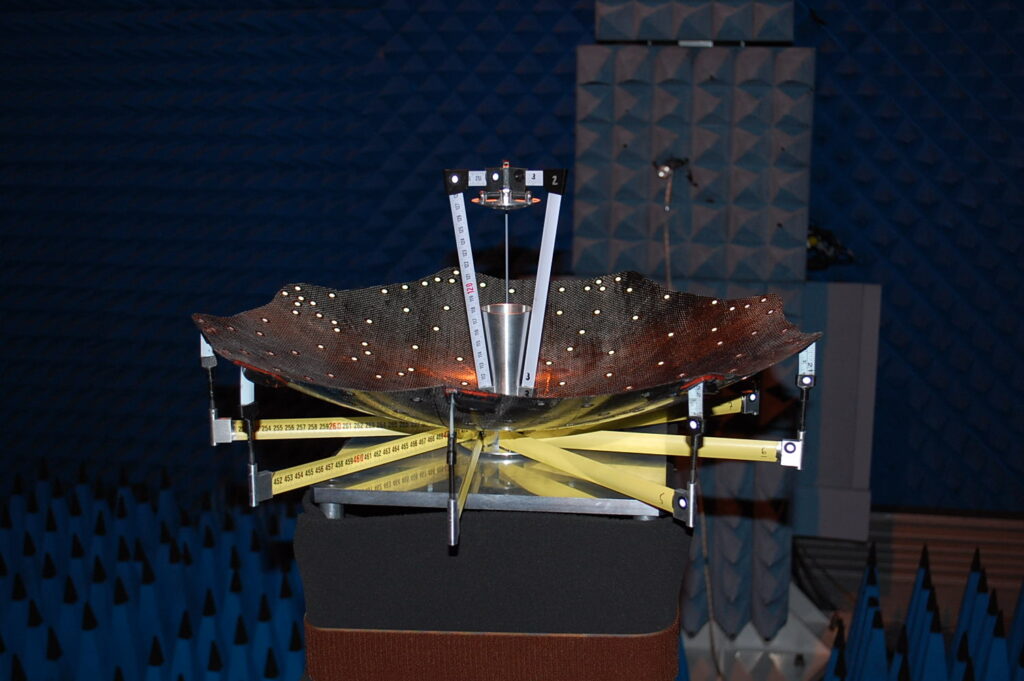

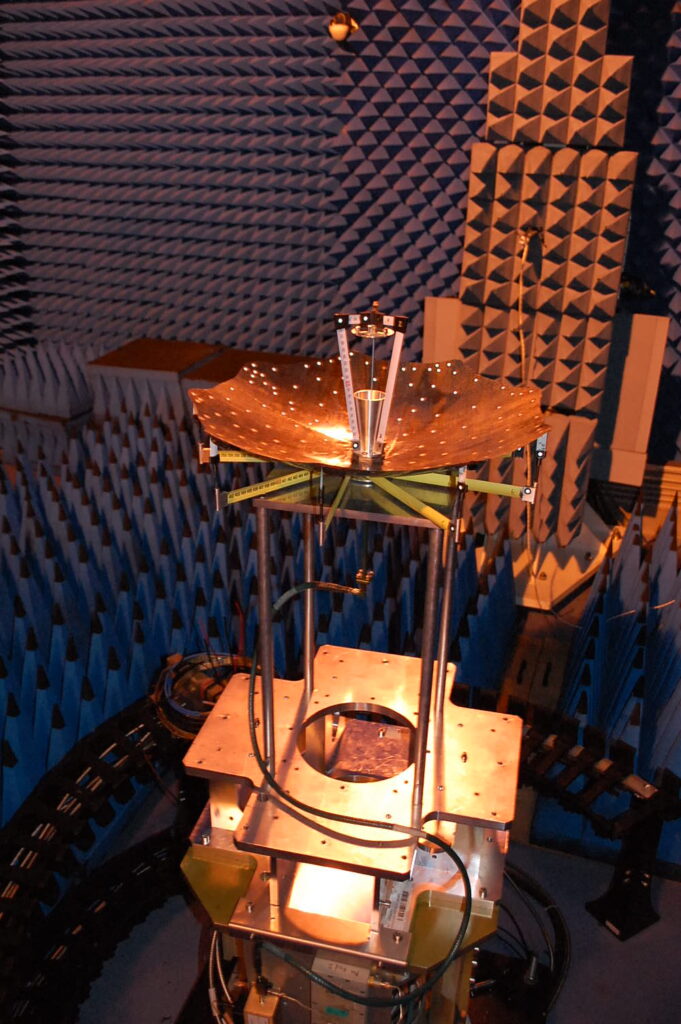

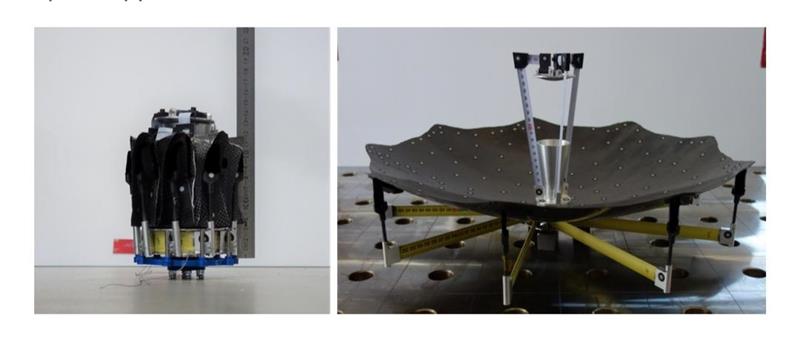

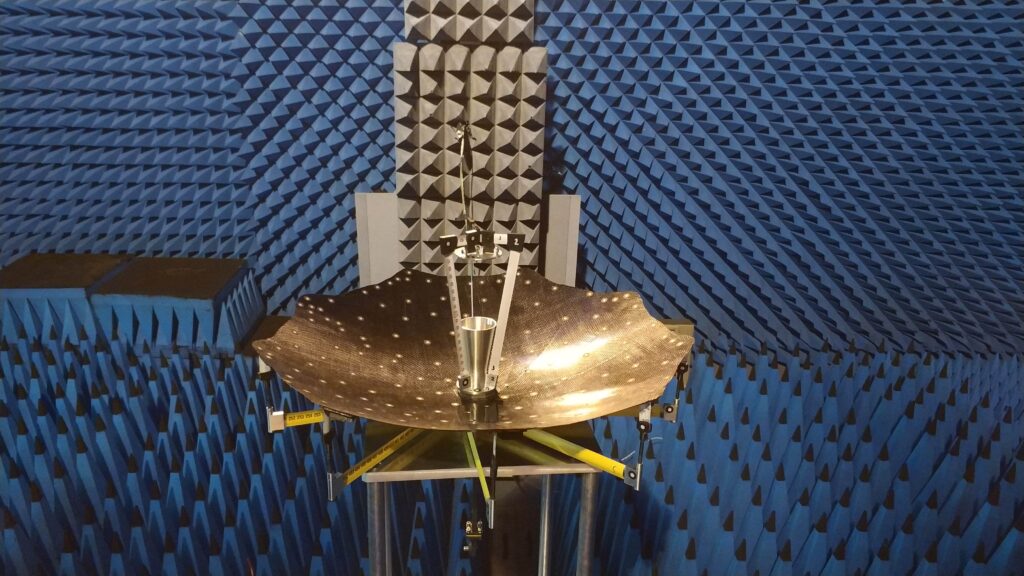

Deployable antenna for small satellites

Our deployable antenna for small satellites is unfolding the future of connectivity—combining a reliable, flight-proven deployment concept with high-performance capabilities reaching up to Ka-band. Compact in design. Trusted in operation. Engineered for orbit.

Key features:

  • Stowed volume: 1.5U (10cm x 10cm x 15cm) volume for CubeSat applications
  • Origami folding design - OriFlexⓇ
  • FlexRS®-I RF shell-membrane surface
  • 0.5 m deployed aperture
  • Reflector deploys passively once HDRM is unlocked

Key features:

  • Drastically enhances performance and functionalities of small satellites
  • Designed to be tested under any orientation, without additional structure to compensate the effects of gravity

Key cases:

  • Earth observation instrumentation
  • Telecommunication payloads
  • Military Communications antennas
  • Military reconnaissance and intelligence
  • Several ESA and DLR R&D projects by LSS for RF even up to 200+ GHz
Explore Deployable Antennas for small sats

Parameter

REVOLVE

Structural Principle

FlexRS® shell, Origami-folded

Frequency Range

X- to Ka-band

Gain

41 dBi (@ 30 GHz)

Deployed Geometry


Projected Diameter

0.5 m (customizable)

Focal Length

0,2 m

Surface Accuracy (RMS)

0.21 mm

Stowed Volume

1.5 Cube Units

Mass

Stowed Reflector, Subreflector, Support Beams, Feed Horn

0.80 kg

Structural Stiffness

In Stowed Configuration

>90 Hz

In Deployed Configuration

11 Hz

Parameter

MilliWave

Structural Principle

Metal-coated FlexRS® shell-membrane, origami-folded

Frequency Range

W-band

Gain

51.67 dBi (@ 89 GHz)

Deployed Geometry


Projected Diameter

0.5 m (customizable)

Focal Length

0.5 m

Clearance

0.025 m

Surface Accuracy (RMS)

0.13 mm

Stowed Volume

1.5 Cube Units

Mass

Reflector, Boom

2.0 kg

Structural Stiffness

In Stowed Configuration

>90 Hz

In Deployed Configuration

1 Hz

Explore with us

Working at Large Space Structures means confronting challenges with innovation, commitment, integrity, passion and team spirit.

Join Us Now
Linkedin Youtube
ISO_9001_colour_en
Information
Get In Touch
  • Parkring 6, 85748 Garching b. München, Germany
  • +49 89 2441687-0
  • +49 89 2441687-10
  • info@largespace.de

Deployable Reflectors

Large Space Structures offers a wide range of high precision reflectors. Varying from Deployable, Shaped Deployable to Reconfigurable Reflectors. Click on the entries below to learn more about our products.

Deployable Reflectors

LSS offers deployable antenna reflectors with aperture diameters ranging from 0.5 m to 35 m and above, using different concepts for the deployable backing structure such as umbrella and peripheral ring architectures. The deployable reflectors can be fitted with a broad range of reflecting surface materials / concepts from the FlexRS® technology and can be used for frequencies up to Ka-band, depending on the category. The following categories are available:

  • Small Deployable Reflectors: 0.5 m – 4.0 m
  • Medium Deployable Reflectors: 4.0 m – 8.0 m
  • Large Deployable Reflectors: 8.0 m – 18.0 m
  • Very Large Deployable Reflectors: 18.0 m – 35.0 m

Shaped deployable reflectors are in active development. They combine the advantages of mesh-based deployable reflectors with the capabilities of radiation pattern contouring.

LSS and Thales Alenia Space are working on in-orbit reconfigurable antenna reflectors. LSS supplies the reconfigurable reflecting surface including the interfaces to the actuators. The reconfigurable surface material (FlexRS® Category III) is suitable for frequencies up to Ka-band and can be tailored to provide the desired mechanical properties according to the requirements of the customer.

FlexRS® Product Range

With the FlexRS® product range, Large Space Structures is offering reflecting surfaces in three categories. From very thin and flexile shell structures to pre-stressed metal meshes and flexible shells with increased stiffness the FlexRS® product range offers highes durability for space exploration.

FlexRS® Category I: Flexible Reflecting Shell Membranes

FlexRS® Category I surfaces are very thin and flexible shell structures, which show aspects of membrane as well as shell behavior. They are therefore called Shell Membranes.

  • Tailorable material properties
  • Used in combination with supporting structures
  • Applicable frequencies: up to Ka-band
  • Functionalization possibility (e.g. RF-active coatings, coloring)

Category II surfaces are based on pre-stressed metal meshes, which are typically supported by a cable network or ribs for providing the reflector’s contour.

  • Applicable frequencies: currently up to Ku-band
  • Grating Lobe Reduction possibility
  • Shaping of category II surfaces in development

Category III surfaces are flexible shells with increased stiffness compared to Category I surfaces, while maintaining high deformability and foldability. These surfaces can fully deploy and maintain their shape under microgravity conditions. This enables the creation of deployable reflectors with greatly reduced need for support structures.

  • Applicable frequencies: up to Ka-band

Test Services

Large Space Structures offers you deep experties in designing, planning and manufacturing high precision space products. We are also offering Testing of Materials, Components and Structures.

Testing of Materials, Components & Structures
  • Design and planning of the measurement setup
  • Manufacturing of adapters and interfaces
  • Execution of the measurement
  • Post processing and analysis of the measurement data and comparison to FEM data

Manufacturing, assembly, integration and testing of breadboards for

  • Design verification
  • Functionality check
  • Structural behavior characterization
  • Design and planning of the measurement setup
  • Manufacturing and installation of special targeting systems
  • Non-contact shape acquisition for object sizes between 0.025 m³ and 75 m³
  • Thermoelastic deformation measurements from ambient temperature up to 100°C
  • Post-processing of the measurement data and comparison with CAD and FEM data

Other Products

Lorem Ipsum

Deployable Structures & MGSE

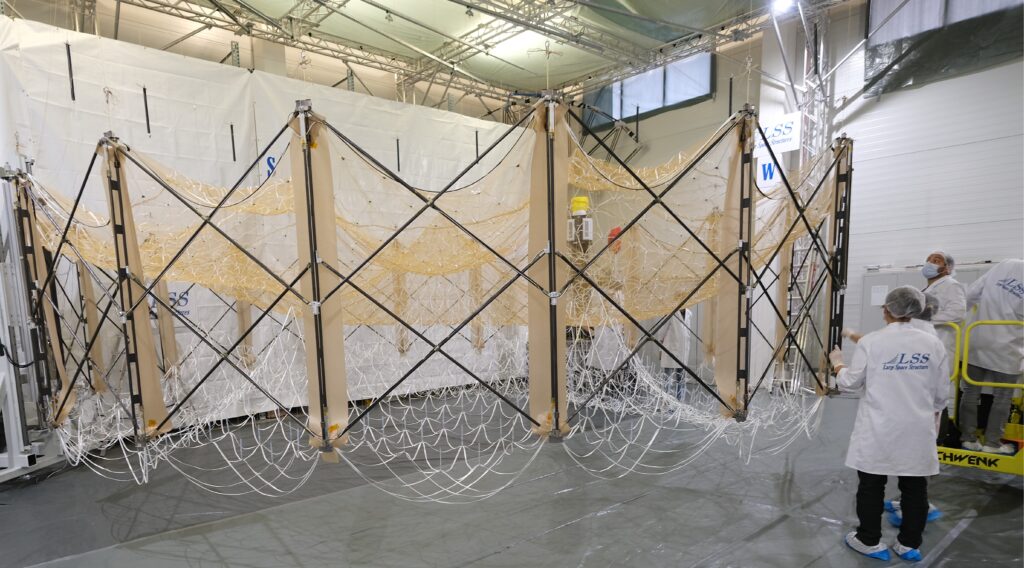

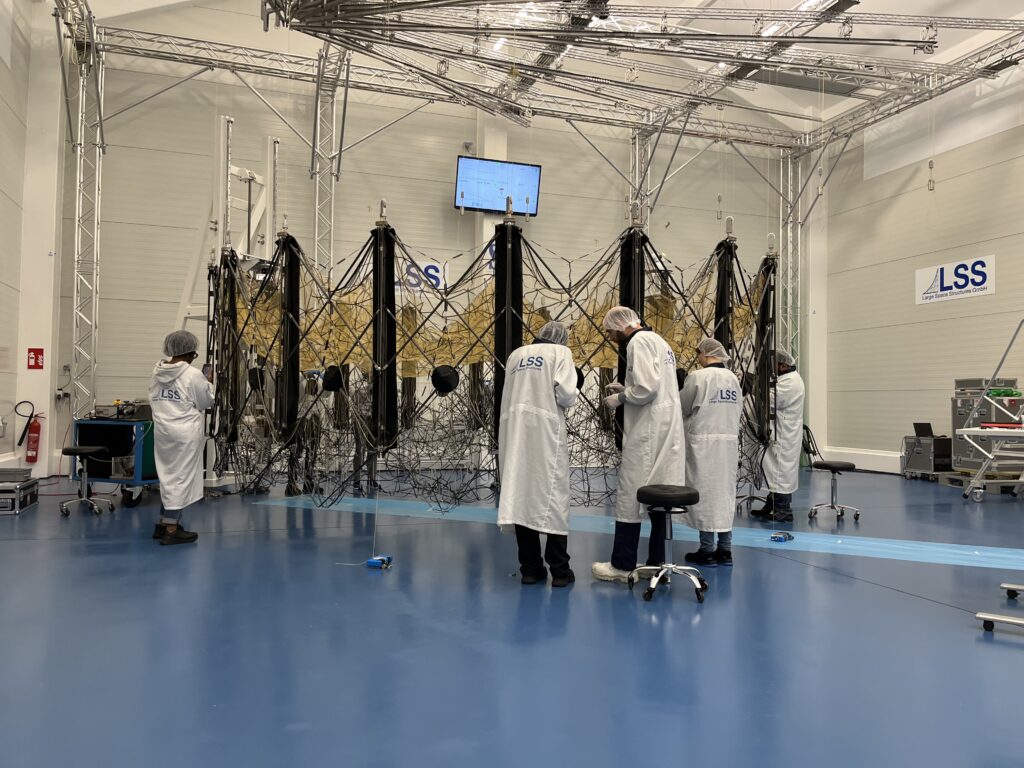

We design and assemble backing structures and mechanical ground support equipment (MGSE) for deployable reflectors.

This typically comprises:

  • Deployable peripheral rings
  • Umbrella type rib assemblies
  • Gravity compensation systems

Reusable, non-outgassing contrast based targets for Photogrammetry:

  • Fully qualified for TV application in ESA’s Large Space Simulator (outgassing, Tmin/max = ±150°C , Vacuum)
  • Tunable thickness and CTE
  • Coded and non-coded versions according to customer specification

LSS uses an Ultimaker 3 3D printer. The following services are provided to customers:

  • Printing of parts / breadboards according to customer specification
  • Optimization of provided models for printing
  • Cleanup of printed parts
  • Available materials: PLA, ABS, PVA (water soluble)
  • Printing volume: 215 x 215 x 200 mm
This site is registered on wpml.org as a development site. Switch to a production site key to remove this banner.
